BRAKE PADS | SB - BP11537

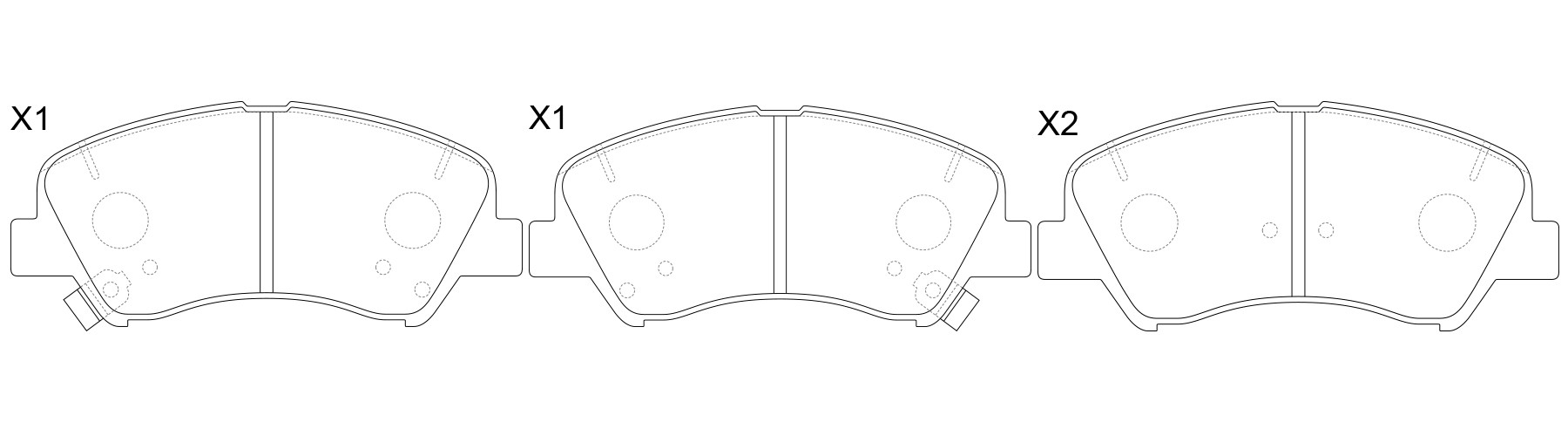

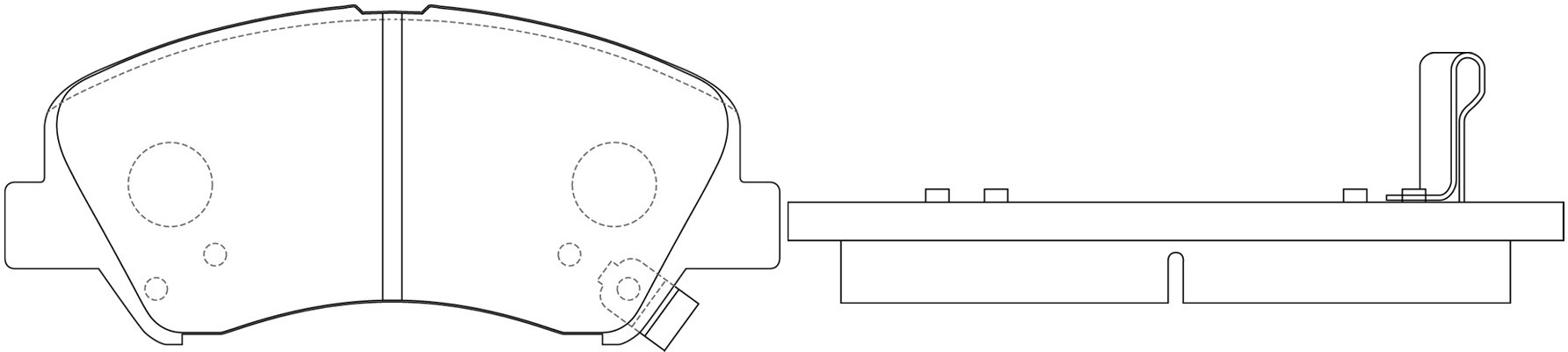

Image Of BP11537
Version Part
Version Number
| Number |
|---|
| BP11537S |
Specification
| Length-1 | 132.8 |
| Pcs In Set | 4 |
| Width-1 | 58.2 |
| Thickness-1 | 17.1 |
| Length-2 | 132.8 |
| Width-2 | 58.2 |
| Thickness-2 | 17.1 |
| Location | Front Axle Brake |
| Position | Left/Right |
Parent Assembly
| Brand | Part | Type |
|---|---|---|
| SB | WD11034FL | WHEEL CALLIPER ASSY |
| SB | WD11034FR | WHEEL CALLIPER ASSY |
| SB | WD11025FL | WHEEL CALLIPER ASSY |
| SB | WD11025FR | WHEEL CALLIPER ASSY |
| SB | WD11023FL | WHEEL CALLIPER ASSY |
| SB | WD11023FR | WHEEL CALLIPER ASSY |
| SB | WD11032FL | WHEEL CALLIPER ASSY |
| SB | WD11032FR | WHEEL CALLIPER ASSY |
| SB | WD13018FL | WHEEL CALLIPER ASSY |
| SB | WD13018FR | WHEEL CALLIPER ASSY |
Crosses
| Owner | Number |
|---|---|
| BENDIX AUS | DB2240 |
| BENDIX AUS | DB2272 |
| FMSI | D1543-8751 |
| FMSI | D1593-8806 |
| FMSI | D2292-9528 |
| GEELY | 1014031279 |
| GEELY | 1064001724-02 |
| HYUNDAI | 58101-1RA00 |
| HYUNDAI | 58101-1RA01 |
| HYUNDAI | 58101-1RA05 |
| HYUNDAI | 58101-1RA10 |
| HYUNDAI | 58101-2VA00 |
| HYUNDAI | 58101-2VA10 |
| HYUNDAI | 58101-2VA50 |
| HYUNDAI | 58101-2VA60 |
| HYUNDAI | 58101-3XA00 |
| HYUNDAI | 58101-3XA20 |
| HYUNDAI | 58101-4LA00 |
| HYUNDAI | 58101-A5A00 |
| HYUNDAI | 58101-A6A00 |
| Owner | Number |
|---|---|
| HYUNDAI | 58101-A6A02 |
| HYUNDAI | 58101-AYA05 |
| HYUNDAI | 58101-B1A00 |
| HYUNDAI | 58101-B1A01 |
| HYUNDAI | 58101-C7A00 |
| HYUNDAI | 58101-C7A50 |
| HYUNDAI | 58101-C7A51 |
| HYUNDAI | 58101-C8A00 |
| HYUNDAI | 58101-C8A50 |
| HYUNDAI | 58101-C8A60 |
| HYUNDAI | 58101-H5A25 |
| HYUNDAI | 58101-H6A15 |
| HYUNDAI | 58101-R1A30 |
| HYUNDAI / KIA | 58101-1RA00 |
| HYUNDAI / KIA | 58101-1VA00 |
| HYUNDAI / KIA | 581011WA00 |
| HYUNDAI / KIA | 581013XA10 |
| Owner | Number |
|---|---|
| HYUNDAI / KIA | 58101C8A60 |
| HYUNDAI / KIA | 58101H5A25 |
| HYUNDAI / KIA | 58101H7A00 |
| HYUNDAI / KIA | 58101H7A10 |
| HYUNDAI / KIA | 58101H8A00 |
| HYUNDAI / KIA | 58101H9A10 |
| KASHIYAMA | D-11268M-01 |
| KASHIYAMA | D-11283M-01 |
| KASHIYAMA | D11268 |
| KASHIYAMA | D11268M |
| KASHIYAMA | D11268MH |
| KASHIYAMA | D11283 |
| KASHIYAMA | D11283M |
| KASHIYAMA | D11283MH |
| KASHIYAMA | D11376MH |
| KIA | 58101-1WA05 |
| KIA | 58101-1WA35 |
| Owner | Number |
|---|---|
| KIA | 58101-4LA00 |
| KIA | 58101-A4A17 |
| KIA | 58101-A6A01 |
| KIA | 58101-A6A02 |
| KIA | 58101-A7A00 |
| KIA | 58101-H8A05 |
| KIA | 58101-H9A10 |
| KIA | 58101-K8A00 |
| NiBK | PN0537 |
| NiBK | PN0537S |
| NISSHINBO | NP6015 |
| NISSHINBO | NP6041 |
| NISSHINBO | NP6137 |
| SANGSIN | SP1399 |
| SANGSIN | SP1399A |
| SANGSIN | SP1400 |
| SANGSIN | SP1545 |
Application
| 07.12~03.17 FE-1 , Eng: 1.8L JL4G18 (Front Axle Brake) (Left/Right) |
| 07.12~11.16 FE-1 , Eng: 1.5L JL4G15 (Front Axle Brake) (Left/Right) |
| 01.15~ FE -3-4 , Eng: 1.5L 4G15 (Front Axle Brake) (Left/Right) |
| 01.15~ FE -3-4 , Eng: 1.8L 4G18 (Front Axle Brake) (Left/Right) |
| 05.16~06.20 FE-3JC , Eng: 1.5L JLy4G15 (Front Axle Brake) (Left/Right) |
| 05.16~07.20 FE-3JC , Eng: 1.8L JLy4G18 (Front Axle Brake) (Left/Right) |
| 04.19~03.21 LX-1 , Eng: 1.5L JLy4G15 (Front Axle Brake) (Left/Right) |
| 01.20~ PH620 LHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 03.23~ P0Y24 SDN LHD , Eng: 1.5L G4FL (Front Axle Brake) (Left/Right) |
| 09.11~05.14 PSB11 HB , Eng: 1.6L G4FC (Front Axle Brake) (Left/Right) |
| 11.11~09.14 SB HB , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 09.11~05.14 CT41 LHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 09.11~05.14 PSB11 SDN , Eng: 1.6L G4FC (Front Axle Brake) (Left/Right) |
| 09.11~05.14 PSB11 HB LHD PR , Eng: 1.6L G4FC (Front Axle Brake) (Left/Right) |
| 09.11~05.14 CT41 RHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 09.11~05.14 SB , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 01.11~12.14 SB , Eng: 1.6L D4FB (Front Axle Brake) (Left/Right) |
| 11.10~12.14 PSB11 SDN DOM , Eng: 1.6L D4FB (Front Axle Brake) (Left/Right) |
| 10.10~10.14 PSB11 SDN RHD , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 10.10~10.14 PSB11 SDN LHD , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 09.14~02.20 PSB15 LHD , Eng: 1.6L D4FB (Front Axle Brake) (Left/Right) |
| 05.14~11.17 PSB15 SDN , Eng: 1.6L G4FC (Front Axle Brake) (Left/Right) |
| 01.14~01.20 CT41 SDN LHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 01.14~01.19 CU41 SDN RHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 01.14~01.19 CT51 , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 01.14~01.19 CT41 RHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 12.17~ PH618 LHD , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 01.18~ PH618 LHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 01.18~ PJ018 LHD SDN , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 01.18~ PH618 LHD VTN , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 01.18~ PH618 LHD , Eng: 1.6L D4FB (Front Axle Brake) (Left/Right) |
| 01.18~ PH618 RHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 08.10~08.13 PSD11 LHD KDOM , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 09.11~07.13 PSD11 LHD , Eng: 1.8L G4NB (Front Axle Brake) (Left/Right) |
| 01.10~01.15 PSD11 RHD , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 01.10~12.13 PSD11 LHD , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 07.13~09.15 MD , Eng: 2.0L G4NA (Front Axle Brake) (Left/Right) |
| 07.13~09.15 MD , Eng: 1.8L G4NB (Front Axle Brake) (Left/Right) |
| 07.13~09.15 MD , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 08.13~08.15 MD , Eng: 1.6L D4FB (Front Axle Brake) (Left/Right) |
| 08.13~09.15 MD , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 01.14~01.16 PSDA14 US , Eng: 1.8L G4NB (Front Axle Brake) (Left/Right) |
| 09.11~07.13 PSD11 RHD AUS , Eng: 1.8L G4NB (Front Axle Brake) (Left/Right) |
| 01.14~11.16 GN41 , Eng: 3.0L G6DG (Front Axle Brake) (Left/Right) |
| 09.19~ BR2 , Eng: 1.0L F3LC (Front Axle Brake) (Left/Right) |
| 09.19~ BR2 , Eng: 1.6L F4FA (Front Axle Brake) (Left/Right) |
| 06.18~03.20 GB , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 06.18~08.20 PC718 RHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 06.18~08.20 PC718 LHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 06.18~03.20 PC818 5DR HB EL , Eng: 1.0L G3LC (Front Axle Brake) (Left/Right) |
| 01.16~06.18 HB EU , Eng: 1.0L G3LC (Front Axle Brake) (Left/Right) |
| 12.14~08.20 BL51 5DR RHD , Eng: 1.2L G4LA (Front Axle Brake) (Left/Right) |
| 12.14~06.18 PC815 EU 5DR , Eng: 1.4L D4FC (Front Axle Brake) (Left/Right) |
| 11.14~06.18 PC715 RHD , Eng: 1.4L D4FC (Front Axle Brake) (Left/Right) |
| 11.14~06.18 PC715 RHD , Eng: 1.2L G4LA (Front Axle Brake) (Left/Right) |
| 11.14~06.18 PC815 5DR TRK , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 11.14~06.18 HB EU , Eng: 1.1L D3FA (Front Axle Brake) (Left/Right) |
| 11.14~06.18 PC715 RHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 11.14~06.18 PC815 5DR LHD , Eng: 1.2L G4LA (Front Axle Brake) (Left/Right) |
| 01.12~03.15 PA612 3DR , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 04.15~02.17 D351 , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 01.15~07.17 PA616 5DR HB LHD , Eng: 1.6L D4FB (Front Axle Brake) (Left/Right) |
| 01.15~07.17 PA616 5DR LHD , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 01.15~07.17 PA616 5DR WGN RHD , Eng: 1.6L D4FB (Front Axle Brake) (Left/Right) |
| 01.12~03.15 PA612 EU 3DR HB , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 09.11~04.15 PA612 5DR , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 09.11~03.15 D351 5DR RHD , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 09.11~03.15 D351 , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 09.11~03.15 PA512 RHD , Eng: 1.8L G4NB (Front Axle Brake) (Left/Right) |
| 09.11~03.15 D351 , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 09.11~02.17 GD , Eng: 1.6L D4FB (Front Axle Brake) (Left/Right) |
| 10.18~12.21 CB , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 02.20~ H520 , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 02.20~ H520 , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 03.11~05.14 SBR11 RUS , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 11.10~05.14 SBR11 RUS , Eng: 1.6L G4FC (Front Axle Brake) (Left/Right) |
| 05.14~12.16 SBR14 RUS , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 05.14~12.16 SBR14 RUS , Eng: 1.6L G4FC (Front Axle Brake) (Left/Right) |
| 01.17~08.20 H517 , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 01.17~08.20 H517 , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 03.11~01.15 TE61D , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 01.12~01.15 TC61D , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 01.12~01.15 TC61C , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 01.15~02.18 TC6AD , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 01.18~ PH618 LHD PR , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 08.16~07.18 PA416 , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 08.16~07.18 PA416 , Eng: 2.0L G4NC (Front Axle Brake) (Left/Right) |
| 08.16~07.18 WAGON - 5DR 7P , Eng: 1.7L D4FD (Front Axle Brake) (Left/Right) |
| 03.12~07.18 HB/SW/PRO , Eng: 1.4L D4FC (Front Axle Brake) (Left/Right) |
| 05.15~07.18 HB/SW/PRO , Eng: 1.0L G3LC (Front Axle Brake) (Left/Right) |
| 03.12~07.18 HB/SW/PRO , Eng: 1.6L D4FB (Front Axle Brake) (Left/Right) |
| 03.12~07.15 PA212 HB LHD , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 03.12~07.15 PA212 HB LHD , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 03.12~07.15 PA212 WGN LHD , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 03.12~08.15 PA212 HB LHD , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 05.15~07.18 A216 , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 05.15~07.18 A216 , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 05.15~07.18 A216 , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 03.12~07.15 A212 , Eng: 1.6L G4FC (Front Axle Brake) (Left/Right) |
| 05.15~07.18 A216 , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 01.13~03.16 FZ61 COUPE RHD , Eng: 2.0L G4NA (Front Axle Brake) (Left/Right) |
| 01.16~03.18 SA716 , Eng: 1.6L G4FG (Front Axle Brake) |
| 01.15~04.21 VTN , Eng: 2.0L G4NA (Front Axle Brake) (Left/Right) |
| 01.14~ SDN LHD , Eng: 1.6L G4FC (Front Axle Brake) (Left/Right) |
| 06.13~02.16 FZ414 , Eng: 1.6L F4FA (Front Axle Brake) (Left/Right) |
| 04.13~03.16 F#411 SDN RHD , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 01.13~03.16 FZ511 5DR HB , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 12.12~11.16 FX41 RHD , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 08.12~03.16 FK41 SDN LHD , Eng: 2.0L G4NA (Front Axle Brake) (Left/Right) |
| 06.12~03.16 F#411 SDN LHD , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 09.11~03.16 F#411 SDN LHD RUS , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 01.13~03.16 FX41 , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 03.16~08.20 YD , Eng: 1.6L D4FB (Front Axle Brake) |
| 03.16~08.20 FZ511 , Eng: 1.6L G4FG (Front Axle Brake) |
| 03.16~08.20 F#411 SDN RHD , Eng: 1.6L G4FG (Front Axle Brake) |
| 03.16~08.20 F#411 SDN LHD , Eng: 1.6L G4FG (Front Axle Brake) |
| 02.13~02.16 FX4A SDN US , Eng: 1.8L G4NB (Front Axle Brake) (Left/Right) |
| 04.15~06.18 FK4A SDN US , Eng: 2.0L G4NA (Front Axle Brake) |
| 01.12~ IHS4D1617 , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 12.12~02.18 FX41 RHD , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 12.12~02.18 FZ41 , Eng: 1.6L G4FJ (Front Axle Brake) (Left/Right) |
| 12.12~02.18 FZ41 CERATO , Eng: 2.0L G4NA (Front Axle Brake) (Left/Right) |
| 04.13~03.16 F#411 SDN RHD SG , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 01.16~02.20 COUPE VTN , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 01.18~ PH718 LHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 01.18~ PH718 RHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 03.12~07.15 A212 , Eng: 1.6L G4FC (Front Axle Brake) (Left/Right) |
| 08.20~ PH820 HB RHD , Eng: 1.2L G4LF (Front Axle Brake) (Left/Right) |
| 01.20~ PH820 HB RHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 03.11~03.15 PIH12 4DR SDN LHD , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 09.11~ UB , Eng: 1.1L D3FA (Front Axle Brake) (Left/Right) |
| 09.11~ UB , Eng: 1.4L D4FC (Front Axle Brake) (Left/Right) |
| 07.11~02.15 DXR12 RUS , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 07.11~02.15 DXR12 , Eng: 1.6L G4FC (Front Axle Brake) (Left/Right) |
| 03.11~05.15 PIH12 5DR HB LHD , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 03.11~05.15 PIH12 4DR SDN RHD , Eng: 1.2L G4LA (Front Axle Brake) (Left/Right) |
| 03.11~05.15 PIH12 4DR SDN RHD , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 03.11~05.15 PIH12 4DR SDN LHD , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 03.11~05.15 DN511 5DR HB RHD , Eng: 1.2L G4LA (Front Axle Brake) (Left/Right) |
| 03.11~05.15 PIH12 5DR HB RHD , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 01.11~01.14 PIH12 3DR HB , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 07.15~03.17 PIH15 5DR HB LHD , Eng: 1.2L G4LA (Front Axle Brake) (Left/Right) |
| 07.15~03.17 PIH15 SDN LHD , Eng: 1.2L G4LA (Front Axle Brake) (Left/Right) |
| 01.15~06.17 PIH15 SDN , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 01.15~06.17 DXR15 RUS , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 01.15~06.17 DXR15 HB , Eng: 1.6L G4FC (Front Axle Brake) (Left/Right) |
| 01.15~06.17 DXR15 SDN RU , Eng: 1.6L G4FC (Front Axle Brake) (Left/Right) |
| 01.15~04.17 DN511 5DR HB RHD , Eng: 1.2L G4LA (Front Axle Brake) (Left/Right) |
| 11.14~06.17 PIH15 5DR HB GCC , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 11.14~06.17 PIH15 5DR HB , Eng: 1.4L G4FA (Front Axle Brake) (Left/Right) |
| 09.14~ DN51 , Eng: 1.4L D4FC (Front Axle Brake) (Left/Right) |
| 01.15~06.17 PIH15 SDN , Eng: 1.6L G4FD (Front Axle Brake) (Left/Right) |
| 01.17~ PH917 SDN LHD , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 01.17~ PH917 HB LHD , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 01.17~ PH917 SDN LHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 01.17~ PH917 HB LHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 11.16~08.20 PH817 HB RHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 11.16~01.20 PH817 HB RHD , Eng: 1.2L G4LA (Front Axle Brake) (Left/Right) |
| 11.16~01.20 PH817 HB LHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 06.17~ SDN LHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 06.17~10.20 PH018 HB RUS , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 06.17~10.20 PH018 , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 06.17~10.20 H018 HB RU , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 10.20~ PH021 , Eng: 1.6L G4FG (Front Axle Brake) (Left/Right) |
| 08.16~ PA416 , Eng: 2.0L G4NA (Front Axle Brake) (Left/Right) |
| 01.18~ PH718 RHD , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 09.20~ AU19 , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
| 06.18~ QE , Eng: 1.4L G4LC (Front Axle Brake) (Left/Right) |
