BRAKE MASTER KIT | SB - BMK21055

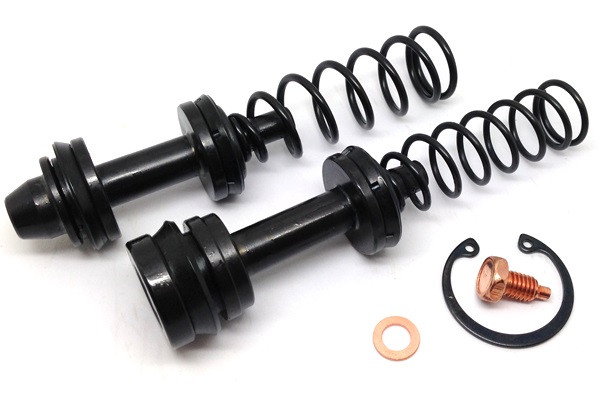

Image Of BMK21055
Specification
| Diameter (inch): | 15/16" |
| Diameter (mm): | 23.81 |
| w/ ABS. | NO |
| Location | Brake Master Cylinder |
Parent Assembly
| Brand | Part | Type |
|---|---|---|
| SB | BM21614 | BRAKE MASTER ASSY |
| SB | BM21173 | BRAKE MASTER ASSY |
| SB | BM21684 | BRAKE MASTER ASSY |
| SB | BM21195 | BRAKE MASTER ASSY |
| SB | BM21212 | BRAKE MASTER ASSY |
| SB | BM21047 | BRAKE MASTER ASSY |
| SB | BM21451 | BRAKE MASTER ASSY |
| SB | BM21156 | BRAKE MASTER ASSY |
| SB | BM21683 | BRAKE MASTER ASSY |
| SB | BM21177 | BRAKE MASTER ASSY |
| SB | BM21775 | BRAKE MASTER ASSY |
| SB | BM21198 | BRAKE MASTER ASSY |
| SB | BM21295 | BRAKE MASTER ASSY |
| SB | BM21294 | BRAKE MASTER ASSY |
Crosses
| Owner | Number |
|---|---|
| Miyaco | TK-T411 |
| SEIKEN | SK45591 |
| SEIKEN | SK46151 |
| Owner | Number |
|---|---|
| TOYOTA | 04493-38010 |
| Owner | Number |
|---|---|
| TOYOTA | 04493-38020 |
| Owner | Number |
|---|---|
| TOYOTA | 04493-60300 |
Application
| 08.89~10.91 LS131 , Eng: 2.4L 2L-THE (Brake Master Cylinder) |
| 01.88~12.99 YS132 , Eng: 2.2L (Brake Master Cylinder) |
| 11.97~08.01 LN170L , Eng: 2.4L 2L-T (Brake Master Cylinder) |
| 08.97~11.05 RZN168 , Eng: 2.4L 2RZ-FE (Brake Master Cylinder) |
| 07.98~04.05 RZN169R , Eng: 2.7L 3RZ-FE (Brake Master Cylinder) |
| 08.97~07.04 LN167 , Eng: 3.0L 5L (Brake Master Cylinder) |
| 01.01~12.04 RZN200 , Eng: 2.7L 3RZ-FE (Brake Master Cylinder) |
| 08.97~03.06 LN166L , Eng: 2.8L 3L (Brake Master Cylinder) |
| 08.97~12.03 LN165R , Eng: 2.4L 2L-T (Brake Master Cylinder) |
| 08.01~08.05 KDN170L , Eng: 2.5L 2KD-FTV (Brake Master Cylinder) |
| 11.97~08.01 RZN173 , Eng: 2.4L 2RZ-FE (Brake Master Cylinder) |
| 08.97~08.05 RZN142L , Eng: 2.0L 1RZ-E (Brake Master Cylinder) |
| 08.97~08.01 LN165L , Eng: 2.4L 2L-T (Brake Master Cylinder) |
| 01.98~12.03 LN190L , Eng: 2.4L 2L-T (Brake Master Cylinder) |
| 08.01~08.05 KDN165 , Eng: 2.5L 2KD-FTV (Brake Master Cylinder) |
| 07.98~04.05 RZN169L , Eng: 2.7L 3RZ-#E (Brake Master Cylinder) |
| 08.97~03.06 KZN165R , Eng: 3.0L 1KZ-TE (Brake Master Cylinder) |
| 08.97~03.06 VZN167 , Eng: 3.4L 5VZ-FE (Brake Master Cylinder) |
| 08.97~03.06 VZN172 , Eng: 3.4L 5VZ-FE (Brake Master Cylinder) |
| 08.97~03.06 LN172R , Eng: 3.0L 5L-E (Brake Master Cylinder) |
| 08.97~03.06 RZN174 , Eng: 2.7L 3RZ-FE (Brake Master Cylinder) |
| 08.97~09.09 LN167R , Eng: 3.0L 5L-E (Brake Master Cylinder) |
| 08.97~03.06 LN166R , Eng: 2.8L 3L (Brake Master Cylinder) |
| 08.97~11.05 LN191L , Eng: 2.8L 3L (Brake Master Cylinder) |
| 08.97~11.05 LN171 , Eng: 2.8L 3L (Brake Master Cylinder) |
| 08.97~11.05 RZN193 , Eng: 2.4L 2RZ-FE (Brake Master Cylinder) |
| 08.97~03.06 RZN142R , Eng: 2.0L 1RZ-E (Brake Master Cylinder) |
| 08.97~03.06 RZN194 , Eng: 2.7L 3RZ-FE (Brake Master Cylinder) |
| 08.97~03.06 YN140 , Eng: 1.8L 2Y (Brake Master Cylinder) |
| 08.97~03.06 KZN190 , Eng: 3.0L 1KZ-TE (Brake Master Cylinder) |
| 08.97~03.06 LN192R , Eng: 3.0L 5L-E (Brake Master Cylinder) |
| 08.97~03.06 KDN190 , Eng: 2.5L 2KD-FTV (Brake Master Cylinder) |
| 08.98~ HZJ78R , Eng: 4.2L 1H-Z (Brake Master Cylinder) |
| 08.99~ HZJ79R , Eng: 4.2L 1H-Z (Brake Master Cylinder) |
| 08.99~08.04 HZJ74 , Eng: 4.2L 1H-Z (Brake Master Cylinder) |
| 01.90~01.07 HZJ71V , Eng: 4.2L 1H-Z (Brake Master Cylinder) |
| 08.98~ HZJ78L , Eng: 4.2L 1H-Z (Brake Master Cylinder) |
| 01.07~ HZJ76L , Eng: 4.2L 1H-Z (Brake Master Cylinder) |
| 01.90~01.07 HZJ79 , Eng: 4.2L 1H-Z (Brake Master Cylinder) |
| 01.90~07.09 FZJ78 , Eng: 4.5L 1FZ-FE (Brake Master Cylinder) |
| 01.90~01.07 HDJ78 , Eng: 4.2L 1HD-FTE (Brake Master Cylinder) |
| 01.90~01.07 HDJ79 , Eng: 4.2L 1HD-FTE (Brake Master Cylinder) |
| 01.07~ VDJ78R , Eng: 4.5L 1VD-FTV (Brake Master Cylinder) |
| 01.07~ VDJ79R , Eng: 4.5L 1VD-FTV (Brake Master Cylinder) |
| 01.90~07.09 FZJ76 , Eng: 4.5L 1FZ-FE (Brake Master Cylinder) |
| 01.07~ GRJ71L , Eng: 4.0L 1GR-FE (Brake Master Cylinder) |
| 08.90~01.04 HZJ74V , Eng: 4.2L 1H-Z (Brake Master Cylinder) |
| 01.07~ GRJ76 , Eng: 4.0L 1GR-FE (Brake Master Cylinder) |
| 08.12~ GRJ78L , Eng: 4.0L 1GR-FE (Brake Master Cylinder) |
| 08.99~08.04 HZJ76K , Eng: 4.2L 1H-Z (Brake Master Cylinder) |
| 01.07~ GRJ79L , Eng: 4.0L 1GR-FE (Brake Master Cylinder) |
| 08.99~08.04 HZJ76V , Eng: 4.2L 1H-Z (Brake Master Cylinder) |
| 01.07~ HZJ76R , Eng: 4.2L 1H-Z (Brake Master Cylinder) |
| 08.99~08.04 HZJ71V , Eng: 4.2L 1H-Z (Brake Master Cylinder) |
| 01.07~ GRJ79R , Eng: 4.0L 1GR-FE (Brake Master Cylinder) |
| 01.90~09.23 HZJ71L , Eng: 4.2L 1H-Z (Brake Master Cylinder) |
| 08.98~07.09 FZJ79L , Eng: 4.5L 1FZ-FE (Brake Master Cylinder) |
| 01.90~12.01 HZJ70 , Eng: 4.2L 1H-Z (Brake Master Cylinder) |
| 08.99~07.09 FZJ71L , Eng: 4.5L 1FZ-FE (Brake Master Cylinder) |
| 01.90~07.09 FZJ74 , Eng: 4.5L 1FZ-FE (Brake Master Cylinder) |
| 08.99~09.17 HZJ79L , Eng: 4.2L 1H-Z (Brake Master Cylinder) |
| 01.07~09.23 VDJ76R , Eng: 4.5L 1VD-FTV (Brake Master Cylinder) |
| 04.96~10.02 KZJ90L , Eng: 3.0L 1KZ-TE (Brake Master Cylinder) |
| 08.00~11.02 KDJ95W , Eng: 3.0L 1KD-FTV (Brake Master Cylinder) |
| 04.96~10.02 VZJ95R , Eng: 3.4L 5VZ-FE (Brake Master Cylinder) |
| 04.96~10.03 VZJ95L , Eng: 3.4L 5VZ-FE (Brake Master Cylinder) |
| 04.96~11.02 VZJ95W , Eng: 3.4L 5VZ-FE (Brake Master Cylinder) |
| 04.96~11.02 RZJ95W , Eng: 2.7L 3RZ-FE (Brake Master Cylinder) |
| 04.96~09.02 KZJ95L , Eng: 3.0L 1KZ-TE (Brake Master Cylinder) |
| 08.00~09.02 KDJ95L , Eng: 3.0L 1KD-FTV (Brake Master Cylinder) |
| 08.00~09.02 KDJ95R , Eng: 3.0L 1KD-FTV (Brake Master Cylinder) |
| 04.96~11.02 KDJ90L , Eng: 3.0L 1KD-FTV (Brake Master Cylinder) |
| 04.96~11.02 RZJ95L , Eng: 2.7L 3RZ-FE (Brake Master Cylinder) |
| 04.95~11.02 KZJ95W , Eng: 3.0L 1KZ-TE (Brake Master Cylinder) |
| 04.96~08.00 KZJ90R , Eng: 3.0L 1KZ-TE (Brake Master Cylinder) |
| 11.96~12.98 KR41V , Eng: 1.5L 5K (Brake Master Cylinder) |
| 11.96~12.04 CR42R , Eng: 2.2L 3C-E (Brake Master Cylinder) |
| 01.97~12.04 KR41R , Eng: 1.5L 5K (Brake Master Cylinder) |
| 10.96~08.07 KR42 , Eng: 1.8L 7K-E (Brake Master Cylinder) |
| 11.96~12.01 CR41R , Eng: 2.0L 2C (Brake Master Cylinder) |
| 11.96~12.98 CR41V , Eng: 2.0L 2C (Brake Master Cylinder) |
| 11.96~12.98 CR51V , Eng: 2.0L 2C (Brake Master Cylinder) |
| 12.98~07.04 CR42V , Eng: 2.2L 3C-E (Brake Master Cylinder) |
| 12.98~07.04 CR52V , Eng: 2.2L 3C-E (Brake Master Cylinder) |
| 01.99~01.05 LF50 , Eng: 2.4L 2L (Brake Master Cylinder) |
| 01.00~12.04 RZF50 , Eng: 2.0L (Brake Master Cylinder) |
| 04.98~12.04 KF80R , Eng: 1.8L 7K-E (Brake Master Cylinder) |
| 01.97~12.04 LF70 , Eng: 2.4L (Brake Master Cylinder) |
| 01.97~12.04 KF60 , Eng: 1.8L (Brake Master Cylinder) |
| 01.97~12.04 KF70 , Eng: 1.8L (Brake Master Cylinder) |
| 01.97~12.04 KF80 , Eng: 1.8L (Brake Master Cylinder) |
| 01.97~12.04 LF60 , Eng: 2.4L (Brake Master Cylinder) |
| 01.97~12.04 LF80 , Eng: 2.4L (Brake Master Cylinder) |
| 01.97~12.04 RZF80 , Eng: 2.4L (Brake Master Cylinder) |
| 01.97~12.04 LF72 , Eng: 2.4L (Brake Master Cylinder) |
| 01.97~12.04 YF60 , Eng: 1.8L (Brake Master Cylinder) |
| 01.97~12.04 YF80 , Eng: 1.8L (Brake Master Cylinder) |
| 01.97~12.04 KF72 , Eng: 1.8L (Brake Master Cylinder) |
| 01.97~12.04 KF82 , Eng: 1.8L (Brake Master Cylinder) |
| 01.97~12.04 LF81 , Eng: 3.0L 5L-E (Brake Master Cylinder) |
| 01.97~12.04 RZF71 , Eng: 2.0L (Brake Master Cylinder) |
| 01.97~12.04 RZF81 , Eng: 2.0L (Brake Master Cylinder) |
| 01.97~12.04 RZF61 , Eng: 2.0L (Brake Master Cylinder) |
| 01.97~12.04 KF60 , Eng: 1.8L (Brake Master Cylinder) |
| 01.97~12.04 KF70 , Eng: 1.8L 7KE (Brake Master Cylinder) |
| 01.97~12.04 KF80 , Eng: 1.8L (Brake Master Cylinder) |
| 01.97~12.04 LF60 , Eng: 2.4L (Brake Master Cylinder) |
| 01.97~12.04 LF70 , Eng: 2.4L (Brake Master Cylinder) |
| 01.97~12.04 LF80 , Eng: 2.4L (Brake Master Cylinder) |
