× WC21321R has been replaced by WC21149R

WHEEL CYLINDER | SB - WC21149R
FeedBack

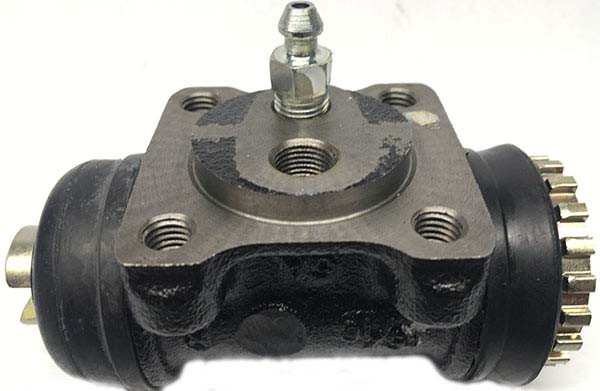

Image Of WC21149R

Alert SB - WC21149R

Specification

Diameter (Inch) :15/16"
Diameter (mm) :23.81
LocationRear Wheel Cylinder
PositionRight

Sub Assembly

Brand Number Type Qty
SB WCK21062R WHEEL CYLINDER KIT 1
SB WCK21032R WHEEL CYLINDER KIT 1

Couple Number

Number
WC21151R

Crosses

Owner Number
SEIKEN SW-T543
Owner Number
TOYOTA 47550-25090
Owner Number
TOYOTA 47550-36191

Application

TOYOTA   »   Dyna
08.85~05.95 YY52 , Eng: 2.0L 3Y    (Rear Wheel Cylinder)   (Right)
10.96~05.99 LY121 , Eng: 2.8L 3L    (Rear Wheel Cylinder)   (Right)
10.96~05.99 LY131 , Eng: 2.8L 3L    (Rear Wheel Cylinder)   (Right)
05.95~05.00 RZU100H , Eng: 2.7L 3RZ-FP    (Rear Wheel Cylinder)   (Right)
05.95~08.99 BU140 , Eng: 3.4L 3B    (Rear Wheel Cylinder)   (Right)
05.95~05.99 BU212 , Eng: 4.1L 15B-F#    (Rear Wheel Cylinder)   (Right)
05.95~05.99 BU132 , Eng: 4.1L 15B-F    (Rear Wheel Cylinder)   (Right)
05.95~05.99 LY201 , Eng: 2.8L 3L    (Rear Wheel Cylinder)   (Right)
05.95~05.99 BU102D , Eng: 4.1L 15BF    (Rear Wheel Cylinder)   (Right)
05.95~05.99 BU102 , Eng: 4.1L 15B-F    (Rear Wheel Cylinder)   (Right)
11.85~05.95 LY51 , Eng: 2.8L 3L    (Rear Wheel Cylinder)   (Right)
08.85~12.95 YY61 , Eng: 2.0L 3Y    (Rear Wheel Cylinder)   (Right)
08.85~08.88 LY60 , Eng: 2.4L 2L    (Rear Wheel Cylinder)   (Right)
05.95~05.99 BU100 , Eng: 3.4L 3B    (Rear Wheel Cylinder)   (Right)
08.87~09.93 YY51 , Eng: 1.8L 2Y    (Rear Wheel Cylinder)   (Right)
01.86~01.96 LY61 , Eng: 2.8L 3L    (Rear Wheel Cylinder)   (Right)
10.89~05.95 BU72D , Eng: 3.7L 14B    (Rear Wheel Cylinder)   (Right)
01.95~12.03 BU100R , Eng: 3.4L 3B    (Rear Wheel Cylinder)   (RF)
01.95~12.03 BU102L , Eng: 3.7L 14B    (Rear Wheel Cylinder)   (RF)
01.95~12.03 BU102R , Eng: 4.1L 15B-F    (Rear Wheel Cylinder)   (RF)
TOYOTA   »   Dyna 150
01.86~12.95 YY60 , Eng: 1.8L 2Y    (Rear Wheel Cylinder)   (Right)
08.86~08.95 YY61L , Eng: 2.0L 3Y    (Rear Wheel Cylinder)   (Right)
TOYOTA   »   DYNA 150/TOYOACE G15
05.95~05.99 LY211 , Eng: 2.8L 3L    (Rear Wheel Cylinder)   (Right)
05.95~07.01 YY201 , Eng: 2.0L 3Y    (Rear Wheel Cylinder)   (Right)
05.95~07.01 YY211 , Eng: 2.0L 3Y    (Rear Wheel Cylinder)   (Right)
10.96~07.01 YY131 , Eng: 2.0L 3Y    (Rear Wheel Cylinder)   (Right)
10.96~07.01 YY121 , Eng: 2.0L 3Y    (Rear Wheel Cylinder)   (Right)
TOYOTA   »   Dyna 200
01.95~12.03 BU101 , Eng: 3.7L 14B    (Rear Wheel Cylinder)   (RF)
TOYOTA   »   Dyna 200 / Toyoace G25
05.95~05.99 BU162D , Eng: 4.1L 15B-F    (Rear Wheel Cylinder)   (Right)
05.95~05.99 BU172 , Eng: 4.1L 15B-F    (Rear Wheel Cylinder)   (Right)
05.95~05.99 BU142 , Eng: 4.1L 15B-F    (Rear Wheel Cylinder)   (Right)
05.95~05.99 BU162 , Eng: 4.1L 15B-F    (Rear Wheel Cylinder)   (Right)
05.95~12.03 RZU100 , Eng: 2.7L 3RZ-FE    (Rear Wheel Cylinder)   (Right)
08.97~05.00 RZU140 , Eng: 2.7L 3RZ-FE    (Rear Wheel Cylinder)   (Right)
