× WDK21061F has been replaced by WDK21063F

WHEEL CALLIPER KIT | SB - WDK21063F
FeedBack

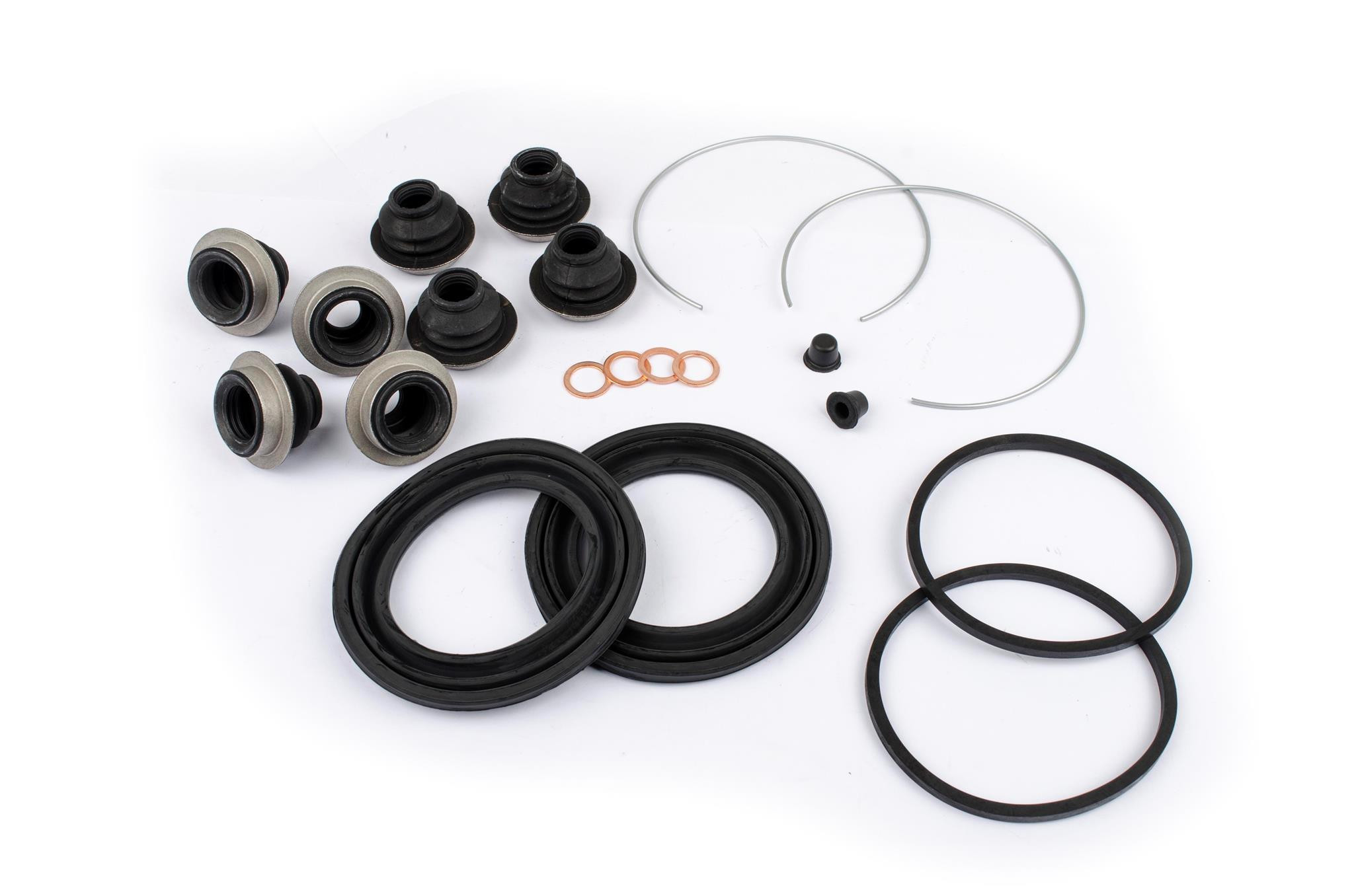

Image Of WDK21063F

Alert SB - WDK21063F

Specification

Diameter (inch):2-5/8"
Diameter (mm):66.67
LocationFront Calliper
PositionLeft/Right
NotesSAME 04479-26050 w/o grease and 4pcs copper-ring

Sub Assembly

Brand Number Type Qty
SB CPS00026 CALLIPER PISTON SEAL 2
SB CPS00078 CALLIPER PISTON SEAL 2

Crosses

Owner Number
Miyaco MP-27
Miyaco MP-31
Owner Number
SEIKEN 260-30031
SEIKEN 260-40465
Owner Number
SEIKEN SP-M27
SEIKEN SP-M31
Owner Number
TOYOTA 04479-26030
TOYOTA 04479-26050

Application

TOYOTA   »   Dyna
10.96~05.99 LY131 , Eng: 2.8L 3L    (Front Calliper)
08.21~ GDY231R , Eng: 2.8L 1GD-FTV    (Front Calliper)
07.10~ KDY231 , Eng: 3.0L 1KD-FTV    (Front Calliper)
12.07~ TRY281 , Eng: 2.0L 1TR-FPE    (Front Calliper)
12.07~ TRY231 , Eng: 2.0L 1TR-FE    (Front Calliper)
09.07~ KDY241V , Eng: 3.0L 1KD-FTV    (Front Calliper)
09.07~ KDY221 , Eng: 3.0L 1KD-FTV    (Front Calliper)
09.07~ KDY231L , Eng: 3.0L 1KD-FTV    (Front Calliper)
01.07~ KDY281 , Eng: 3.0L 1KD-FTV    (Front Calliper)
09.06~02.15 KDY221R , Eng: 3.0L 1KD-FTV    (Front Calliper)
08.04~09.07 KDY270 , Eng: 2.5L 2KD-FTV    (Front Calliper)
08.04~09.07 KDY280 , Eng: 2.5L 2KD-FTV    (Front Calliper)
08.04~09.07 KDY290V , Eng: 2.5L 2KD-FTV    (Front Calliper)
08.04~09.07 KDY220 , Eng: 2.5L 2KD-FTV    (Front Calliper)
07.04~09.07 KDY230 , Eng: 2.5L 2KD-FTV    (Front Calliper)
08.03~08.07 RZY231H , Eng: 2.7L 3RZ-FPE    (Front Calliper)
07.01~ TRY220 , Eng: 2.0L 1TR-FE    (Front Calliper)
08.03~08.07 RZY281H , Eng: 2.7L 3RZ-FPE    (Front Calliper)
10.96~05.99 LY121 , Eng: 2.8L 3L    (Front Calliper)
05.99~07.01 LY122 , Eng: 3.0L 5L    (Front Calliper)   (Left/Right)
05.99~07.01 LY152 , Eng: 3.0L 5L    (Front Calliper)   (Left/Right)
05.99~07.01 LY162 , Eng: 3.0L 5L    (Front Calliper)   (Left/Right)
05.99~07.01 LY132 , Eng: 3.0L 5L    (Front Calliper)   (Left/Right)
06.01~08.04 LY230 , Eng: 3.0L 5L    (Front Calliper)
07.01~08.03 RZY230 , Eng: 2.0L 1RZ-E    (Front Calliper)
07.01~08.03 LY280 , Eng: 2.7L 3RZ-FE    (Front Calliper)
07.01~08.04 LY280 , Eng: 3.0L 5L    (Front Calliper)
07.01~08.04 LY270 , Eng: 3.0L 5L    (Front Calliper)
07.01~08.04 LY220 , Eng: 3.0L 5L    (Front Calliper)
07.01~08.07 RZY220 , Eng: 2.0L 1RZ-E    (Front Calliper)
08.01~ TRY230 , Eng: 2.0L 1TR-FE    (Front Calliper)
10.01~09.07 KDY240V , Eng: 2.5L 2KD-FTV    (Front Calliper)
TOYOTA   »   Dyna 150
07.01~ LY230R , Eng: 3.0L 5L    (Front Calliper)
09.06~ KDY231R , Eng: 3.0L 1KD-FTV    (Front Calliper)   (Left/Right)
TOYOTA   »   DYNA 150/TOYOACE G15
10.96~05.99 LY161 , Eng: 2.8L 3L    (Front Calliper)
10.96~05.99 LY151 , Eng: 2.8L 3L    (Front Calliper)
10.96~07.01 YY131 , Eng: 2.0L 3Y    (Front Calliper)   (Left/Right)
10.96~07.01 YY121 , Eng: 2.0L 3Y    (Front Calliper)   (Left/Right)
TOYOTA   »   Dyna 350
TOYOTA   »   Hiace
TOYOTA   »   Hiace Regius
TOYOTA   »   Hiace Van
TOYOTA   »   Quick Delivery
05.95~05.99 LY151 , Eng: 2.8L 3L    (Front Calliper)
05.99~08.01 LY152 , Eng: 3.0L 5L-E    (Front Calliper)   (Left/Right)
08.01~07.04 LY270 , Eng: 3.0L 5L    (Front Calliper)
08.01~07.04 LY228K , Eng: 3.0L 5L-E    (Front Calliper)
TOYOTA   »   T100
TOYOTA   »   ToyoAce/Dyna Urbannsuporter
